Product DescriptionCompany Info.<>
- Model:
- 086E80 086C01 086C02 086C03 086C04
- Processing customization:
- Yes
- Measuring range:
- condenser microphone
- Measurement accuracy:
- 450 mV/Pa)
- Frequency range:
- 100 kHz
- Hammer weight:
- 30 grams
- Hammer head diameter:
- 50 mm
- Length of hammer handle:
- 300 mm

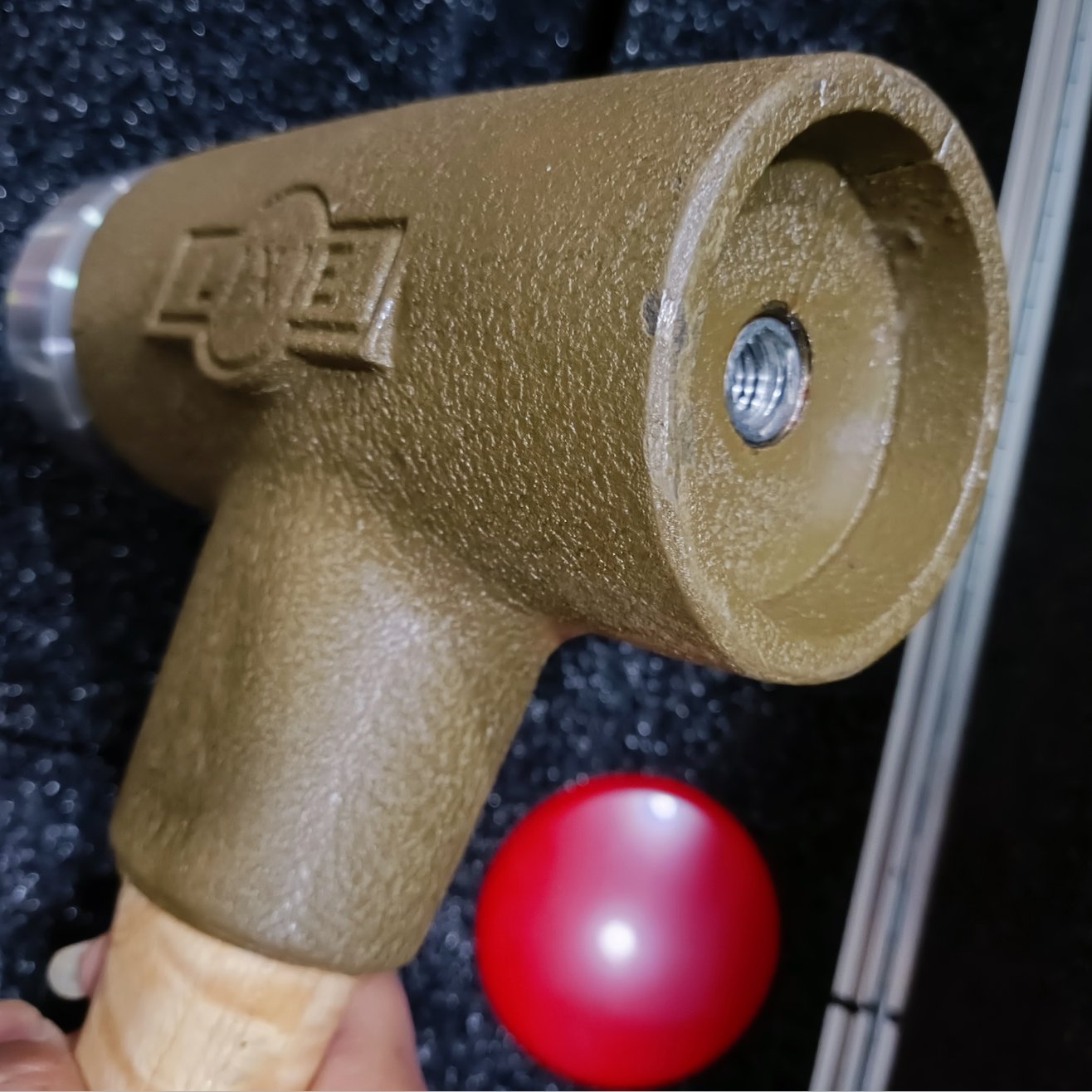

PCB Impact Hammer
use
Structural health testing
■ Resonance measurement
Modal analysis
model
086E80
086C01
086C02
086C03
086C04
Tip 1
in practical application
What factors influence the choice of hammer?
There is a general rule of thumb that larger structures require larger ones to follow.
Impact hammer. Here are some guidelines:
086E80-Printed circuit boards and hard disk drives
086C01-Small damping plates and frames
086C02, C03, C04-Medium frame structure, e.g. frame, launch
Machined and machined parts
086D05-Heavy components such as pumps and compressors
086D20-Heavy structures such as bases and tanks
086D50- -Buildings, bridges, ships and other large structures
Model 086D05 086D20 086D50
Microphone and preamplifier
use
Noise, vibration and roughness (NVH) testing
■ Environmental noise analysis
■ Sound power test
■ Transmission path analysis
■ Sound pressure imaging
■ Conventional acoustic noise reduction
Prepolarization (0V)
6.5
Model 378A04 (450 mV/Pa)
80
15
Model 377A07 (50 mV/Pa)
145
oneself
by
15
Model 377B02 (50 mV/Pa)
146
field
20
Model 377A06 (12.6 mV/Pa)
160
35
Model 377C01 (2 mV/Pa)
164 )
11.5
150
Model 377A15(50 mV/Pa)
15
Model377B11 (50 mV/Pa) 143
press
force
( 20
Model 377C13 (12.6 mV/Pa)
155 '
field
65
Model 377A12 (0.25 mV/Pa)
178
( 35
Model 377C10, rear vented (1 mV/Pa)
1741
Model 377A14, side vented (1 mV/Pa)
174
Prepolarization (0V)
condenser microphone
characteristic
■ New design
■ICP@ Sensor Power Supply
■ Low cost per channel
■ IEC“ Type 1” compliant
■ Use BNC or 10-32 connector coaxial cable
■ Interchangeable power supply with ICP@ accelerometer or pressure sensor
model
377C01
377C10
377A12
377A14
Pre-polarized (0V) precision microphone
model
377A06
377A07
377A21
377B02
377B11
377C13
377C20
377A15
Externally polarized (200V) precision microphone
model
2520
2530
2540
2559
377C41
2541
2560
2570
2575
the preamplifier
model
426B03
426E01
HT426E01
426A10
426A11
426A30
426B31
array microphone
characteristic
■ Modern pre-polarized (0V) design
■ICP@ Sensor Power Supply
■ Low cost per channel
■ Use BNC, SMB or 10-32 connector coaxial cable
■ Interchangeable with ICP ® accelerometer and pressure sensor
use
■ Acoustic holography
Beamforming
■ Acoustic testing within the normal range of hearing
■ Sound pressure imaging
Preventive maintenance
■ Mechanical monitoring
ICP@ Microphone array and integrated preamplifier
model
130A23
130A24
130F20 I
130F21
130F22
acoustic attachment
adapter
079A02 Adapter for 1/4 inch microphone and 1/2 inch preamplifier
079B03 Adapter for 1/2 inch microphone and 1/4 inch preamplifier
079B25 Adapter for connecting 1-inch microphone to 1/2-inch preamplifier
079A24 5/8 "bolt to 1/4" bolt tripod adapter for fixing microphone
079A29 Swivel adapter for connecting bracket
079A41 1/4 inch microphone right angle adapter
079A42 1/2 inch microphone right angle adapter
079A52 Rugged Grating Cap for 12" (12mm) High Sensitivity Microphones
Cable (other lengths available)
EXA010 10-foot cable, 7-pin connector
003C10 10-foot coaxial cable with 10-32 plug connector on one end and BNC plug connector on the other end
003D10 10-foot coaxial cable with BNC plug connectors at both ends
003U10 10-foot coaxial cable with SMB plug connectors at both ends
003V10 10-foot coaxial cable with SMB plug connector on one end and BNC plug connector on the other
acoustic attachment
correcting device
CAL200 1kHz,94 and 114dB, Calibrator
ADP109 Adapter for CAL 200 and 1/4 inch microphone
CAL250 250Hz, 114dB Calibrator
ADP021 Adapter for CAL 250 and 1/4 inch microphone
079A31 8 Channel Coupler for CAL250 Calibrator
079A30 Piston Sounder 1-inch Microphone Calibration Adapter
environmental protection
079A07 3-1/2 inch windshield for 1/4 inch microphone
079A06 3-1/2 inch windshield for 1/2 inch microphone
079C20 1/4 inch microphone nose cone
079B21 1/2 inch microphone nose cone
EPS2116 outdoor protection, 3/4 inch mounting, 1/4 inch side outlet mounting
microphone bracket
079B10 1/4-inch sound transmitter stand
079A11 1/2 inch microphone stand
079C23 1/4 inch and 1/2 inch microphone racks
079A32 1/4 inch microphone holder
Tripods and mounts
079A15 Tripod with telescopic rod
079B16 Mini tripod with adjustable legs
079A17 camera tripod
079A18 Adjustable clamp
